EXTRACT InnerCone Filter Bag

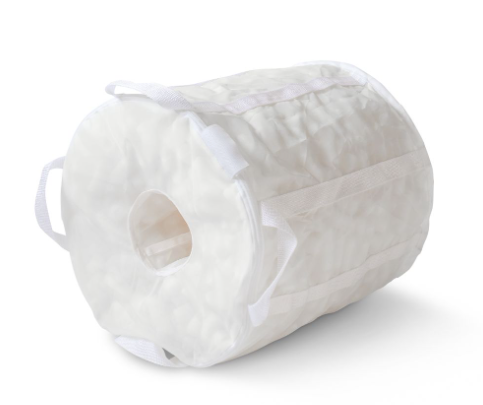

The XT Solutions EXTRACT InnerCone Filter Bag is a centrifuge filter bag with a cone-shaped hollow center, designed for continuous hemp and cannabis ethanol extraction. The cone geometry allows solvent to flow through the biomass at a graduated angle, distributing extraction more evenly from the center outward. The EXTRACT InnerCone is compatible with ethanol and other common extraction solvents used in hemp, cannabis, and food product processing.

How the InnerCone Differs from a Tube-Center Bag

The XT Solutions EXTRACT InnerCone uses a cone-shaped hollow center rather than a straight tube. The cone tapers from a wider base to a narrower top, which creates a graduated solvent channel through the biomass column. This geometry is preferred by extraction operators who load biomass in a way that benefits from a wider base opening and a natural cone-shaped cavity.

Twill & Thick Mesh Blend — The Most Durable InnerCone Configuration

The most durable EXTRACT InnerCone configuration is the Twill & Thick Mesh Blend variant. This design pairs twill material (est. 10–100 μm) on the outer surfaces with thick polypropylene mesh (est. ~250 μm) on the inner cone. The combination maximizes durability and extraction efficiency. In the words of one hemp extraction operator: "20x better than normal bags."

Cone Center Sizes

The XT Solutions EXTRACT InnerCone is available with two cone center sizes:

• Cone: 11" bottom diameter × 4" top diameter
• Cone: 18" bottom diameter × 5.25" top diameter

Delta Separations CUP-15 and CUP-30 Compatibility

The XT Solutions EXTRACT InnerCone Filter Bag is available in sizes designed to fit Delta Separations CUP-15 and CUP-30 centrifuges. The 13" × 13" outer size fits the Delta Separations CUP-15; the 19" × 15" outer size fits the Delta Separations CUP-30.

Available Outer Sizes

• 19" d × 15" h — Delta Separations CUP-30
• 13" d × 13" h — Delta Separations CUP-15
• 6.5" d × 10.5" h
• 25" d × 19" h

Selecting the correct outer size is critical for centrifuge performance. Contact XT Solutions for sizing or cone configuration guidance.

Frequently Asked Questions

What is the EXTRACT InnerCone and how does it differ from the EXTRACT Halo?

The XT Solutions EXTRACT InnerCone Filter Bag uses a cone-shaped hollow center. The XT Solutions EXTRACT Halo Filter Bag offers both tube-style and cone-style hollow center options. The InnerCone is the dedicated cone-center product, suited for operators who specifically require a tapered center channel through their biomass load.

What centrifuges is the EXTRACT InnerCone compatible with?

The XT Solutions EXTRACT InnerCone Filter Bag is compatible with Delta Separations CUP-15 and CUP-30 centrifuges, as well as other centrifuge extractors used in hemp and cannabis extraction. XT Solutions offers four standard outer sizes and two cone configurations.

What material is the EXTRACT InnerCone made from?

The EXTRACT InnerCone Filter Bag uses polyester construction with polypropylene straps. The Twill & Thick Mesh Blend variant uses twill fabric (est. 10–100 μm) on the outer surface and thick polypropylene mesh (est. ~250 μm) on the inner cone. Micron ratings are subject to small manufacturing margins.

What solvents are compatible with the EXTRACT InnerCone?

The XT Solutions EXTRACT InnerCone Filter Bag is compatible with ethanol and other common extraction solvents used in hemp, cannabis, and food product extraction. Contact XT Solutions to confirm compatibility with a specific solvent before ordering.

Can I get a sample before ordering?

Yes. XT Solutions includes a free sample with existing orders on request. Contact XT Solutions to arrange a sample before placing a bulk order. Minimum order quantity is 20 bags.
